DENSO GT10Q工業級二維條碼掃描器 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 產品名稱：DENSO GT10Q工業級二維條碼掃描器 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 產品編號：DENSO GT10Q工業級二維條碼掃描器 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 詳細說明： | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
GT10Q / GT10Q 條碼掃描器 / Denso GT10Q / Denso GT10Q 條碼掃描器
產品特點：
Denso公司的GT10Q是一款工業級的二維條碼掃描器。它采用了最新的二維CMOS技術和Denso公司獨特的解碼芯片，具有高速的矩陣二維碼解碼速度。尤其是對Denso發明的QR碼的解碼速度更是比其它競爭產品快四倍以上。此外，Denso GT10Q還擁有條碼檢驗、多碼掃描、激光定位、圖像拍攝、震動提示等獨特功能。Denso GT10Q具有堅固的工業結構，密封防塵等級達IP54，耐沖擊為26次從2米高處跌落水泥地面無損。
產品特性及參數
 Outstanding Readability Superior Reading Speed of 2D Codes and Bar Codes (Twice Conventional Model(1) Speeds)
 Excellnt User Friendly OperationScanning Area Marker
 3 color Extra-bright LED
 Easy to see scanner information
Vibrator Function
Scan completion confirmed with vibration
Adjustable Buzzer Volume
3 levels of buzzer volume to suit the surrounding environment

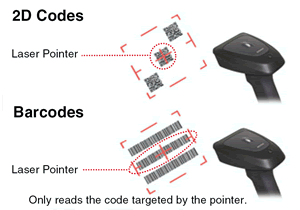

 Versatile Reading FunctionsTarget Pointer Mode
 Read Multiple Codes Simultaneously
 The GT10Q can read multiple codes within the reading area, such as continuous QR codes and multiple bar codes, in a single reading.
Barcode Reader
The GT10Q achieves high-speed reading equal to traditional linear readers
 Drop Test Standard High standard of impact resistance due to a new stronger body and a design which incorporates impact rubber for added protection.
 Splash and Dust Proof to Meet IP54 Standards Passes IEC International Standards Protection Class IP54(equivalent to JIS splash resistance). High level of protection for use in rugged environments.
 One-touch Key FunctionsChoice of scanning method for user use
 Code Discrimination
By registering two types of readable symbologies in the GT10, the magic key can toggle to avoid reading the incorrect codes, while in multiple reading code mode
Power ON/OFF Control
Scanner is on stand by when magic key is OFF. Scanning beings when magic key is(switched) ON.
Transmitting Designated Characters
Data to be transmitted (i.e operation start codes) can be setup beforehand when the magic key is ON.
Retransmit Scanned Data

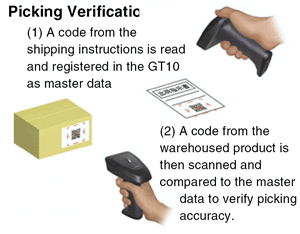

 Wide range of FunctionsCode comparison
Determines if a code being scanned matches a master bar code redistered in the GT10Q.
 Remote ON/OFF Function
Scanning can be turned ON/OFF via commands from a host computer.
 Auto-sensing function
The auto-sensing function automatically begins scanning when a label is detected.
 Programmed Data Formatting
Easily configure the GT10 to automatically format scanner output to meet legacy system reguirements.
  Simple Setup with Easy to Use SoftwareSimple installation setup software included
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
