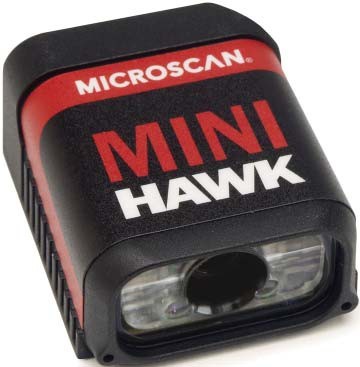

MINIHAWK嵌入式 條碼掃描器 |
|
| 產品名稱：MINIHAWK嵌入式 條碼掃描器 |
| 產品編號：MINIHAWK嵌入式 條碼掃描器 |
| 詳細說明： |
Mini Imagers for Direct Part Marks
MINI Hawk imagers pack aggressive direct part mark (DPM) reading algorithms into a miniature imager that is both powerful and easy to use for barcode and 2D track, trace and control applications. Aggressive decoding is ensured through X-Mode technology, which reads damaged or diffi cult symbols with no confi guration or setup required.
With high speed and high resolution confi gurations available, there is a MINI Hawk imager to solve virtually any challenging application.
Decode Any Symbol
The MINI Hawk consistently reads damamged, distorted or otherwise challenging direct part marks with our patented decode algorithms.
Autofocus
For real time dynamic autofocus, position the symbol at the center of the field of view, and push the EZ button. The MINI Hawk automatically adjusts focal distance and sets internal parameters to optimize the symbol.

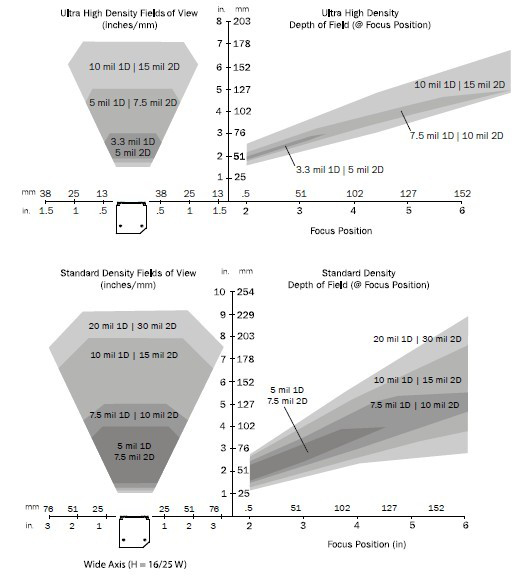

Wide Field of View

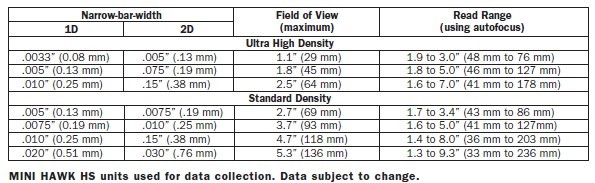

Read symbols as large as 2” (50.8 mm) square as close as 1” (25.4 mm) with diffractive fi eld illumination and optional right angle mirror.
X–Mode Technology
In addition to the most aggressive decoding available, X-Mode technology provides easy setup and deployment of the MINI Hawk in any application.
Compact and Lightweight
Miniature form factor fits easily in tight spaces, and is lightweight for mounting into robotic applications.
Application Examples
Automotive
• Dot peen mark on powertrain components • Laser marks on automotive electronics components Medical Devices • Laser marks on components Electronics • Laser markings on printed circuits boards, fl ex circuits Semiconductors • Laser marks on packages and components MINI Hawk Series: At a Glance
• Decode speed and read range: Varies by model
• X-Mode Decoding Technology • Autofocus • Optional USB Connectivity MINI HAWK HR: High resolution imager
MINI HAWK HS: High speed imager MINI HAWK SERIES SPECIFICATIONS AND OPTIONS

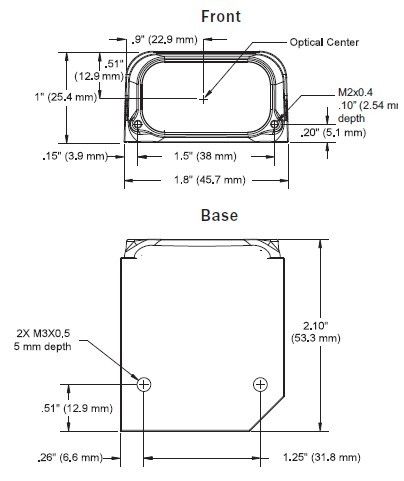

 MECHANICAL
Height: 1” (25.4 mm) Width: 1.80” (45.7 mm)
Depth: 2.10” (53.3 mm) Weight: 2--oz (57 g) ENVIRONMENTAL
Enclosure: IP54 (category 2)
Humidity: up to 90% (non-condensing) Operating Temperature: 0° to 40°C (32° to 104°F) Storage Temperature: -50° to 75° C (-58 to 167°F) CE MARK
EN 55024: 1998 ITE Immunity Standard
EN 55022:98 ITE Disturbances LIGHT SOURCE
Type: High output LEDs
LIGHT COLLECTION OPTIONS
Progressive scan, square pixel. Software adjustableshutter speed, electronic shutter
MINI HAWK HR: 1280 by 1024 pixels (SXGA) MINI HAWK HS: 752 by 480 pixels (WVGA)  SYMBOLOGY TYPES
2D Symbologies: Data Matrix, QR Code, Micro QR Code
Stacked Symbologies: PDF417, Micro PDF417,GS1 Databar (Composite & Stacked) Linear Bar Codes: Code 39, Code 128, BC 412, I2 of 5,UPC/EAN, Codabar, Code 93 READ PARAMETERS
Pitch: ±30° Skew: ±30° Tilt: 360°
Decode Rate: Up to 60 decodes per second (HS model) Focal Range: 1.3 to 9.3” (33 to 236 mm) (autofocus) CONNECTOR

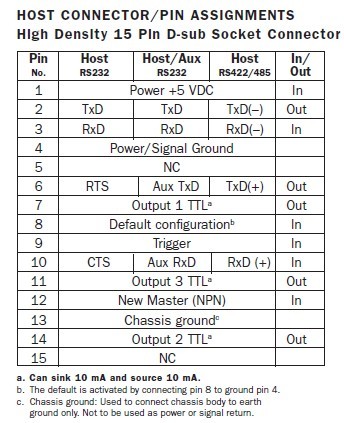

Type: 3 ft. cable terminated with High Density15-pin D-Sub socket connector or USB Type A connector
INDICATORS
LEDS: Read Performance, Power, Read Status
Green Flash: Good read
Blue V: Symbol locator
Beeper: Good read, match/mismatch, noread, serial command confi rmation, on/off
COMMUNICATION PROTOCOLS
Standard Interface: RS-232, RS-422, or USB
ELECTRICAL
Power: 5 VDC +/– 5 %, 200 mV p-p max. ripple,494 mA @ 5 VDC (typ.)
Optional Int.: 10-28 V Accessory    DISCRETE I/O
Trigger Input: 5 to 28 VDC rated (.16 mA)
New Master: 5 to 28 VDC rated (.16 mA) Outputs (1, 2, 3): 5V TTL compatible, can sink 10 mA andsource 10mA Optional I/O: Optoisolated (with IC-332 accessory) SAFETY CERTIFICATIONS DESIGNED FOR
FCC, UL/cUL, CE, CB
|
|
